Title: 02. Press Blow Forming Process

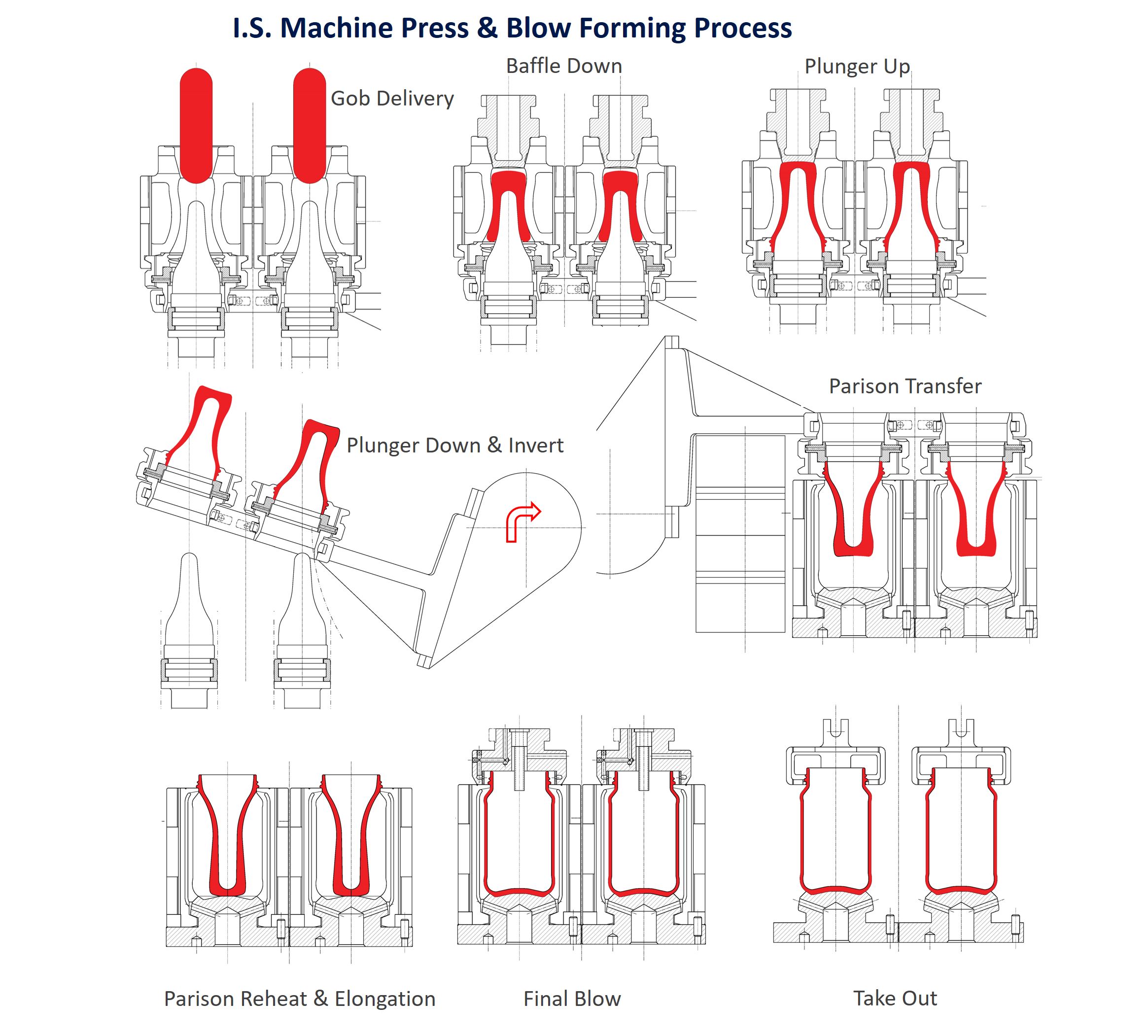

Procedure Brief Description:
(1) Gob Delivery (2) Baffle Down (3) Plunger Up (4) Plunger Down & Invert
(5) Parison Transfer, (6) Parison Reheat (7) Final Blow (8) Take Out
Procedure Detail Description:
(1) BM Close, PL Kick Back, Gob Loading,
(2) BA Down, PL Up,
(3) PL Down, BA Up, BM Open,
(4) Invert (after short Blank Side Reheat), FM Close
(5) Parison Transfer, NR Open, Revert, NR Close,
(6) Parison Reheat (Blow Side) and Elongation,
(7) BH Down, Final Blow On and Vacuum Assist On, if applicable,
......Final Blow Off and Vacuum Assist Off, if applicable, BH Up, FM Open,
(8) TT in and out, after picking up product.
Note: Funnel is optional in PB Forming Process;
...... FU Down for Gob Loading and FU Up immediately after.
...... FU Down for Gob Loading and FU Up immediately after.
